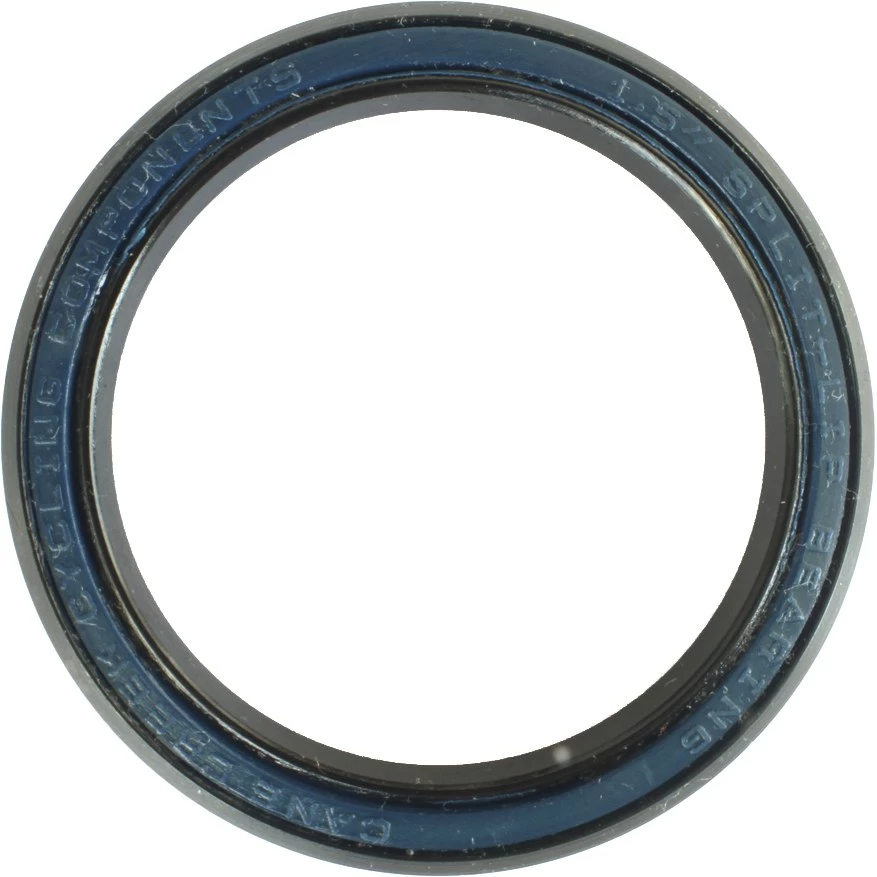

Enduro Bearings ACB6808 CC BO – ABEC 3 – Headset Angular Contact Ball Bearing – 40x52x6.5mm (36×45º)

Headset ABEC 3 angular contact ball bearing with 40 mm inner diameter, 52 mm outer diameter, 6.5 mm thickness and double-lip type sealing.
36×45° Cane-Creek-Standard.

Enduro Bearings don’t mess around with inexpensive headset bearings, it’s simply not worth it. While many headset makers will offer you Cr-Mo or standard steel headsets for your carbon road bike, steel cross bike, or full suspension mountain bike, they feel that’s like putting bias ply tires on a rally car. Enduro Bearings don’t offer the entry level for headset bearings. Instead they begin with chromium steel, Black Oxide finish A/C type and then offer full 440C stainless steel at the top. They are always engineered with the largest balls possible and dual lip seals riding in a micro groove for ultimate protection against sweat and the elements. They are filled 90% with high pressure water proof grease, so you don’t have to ever guess if there is grease inside.

In standard radial bearings, only 3 or 4 balls make contact during the load, at any given time. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

ABEC 3 bearings use grade 10 Chromium Steel Balls and 52100 High Carbon Chromium Alloy Races.
The high precision balls are within 10/1.000.000″ round, twice as round as the industry standard, at it’s highest level.
The alloy races are made from a vacuum de-gassed process for the purest chromium alloy steel, hardened to R-62, extremely tough and very durable. Polished to a mirror finish for ABEC-3 precision and noiseless movement. The riveted Steel Retainer stands for toughness, ABEC-3 tolerances and noise tested.



Manufacturer item code: ACB 6808 CC BO
