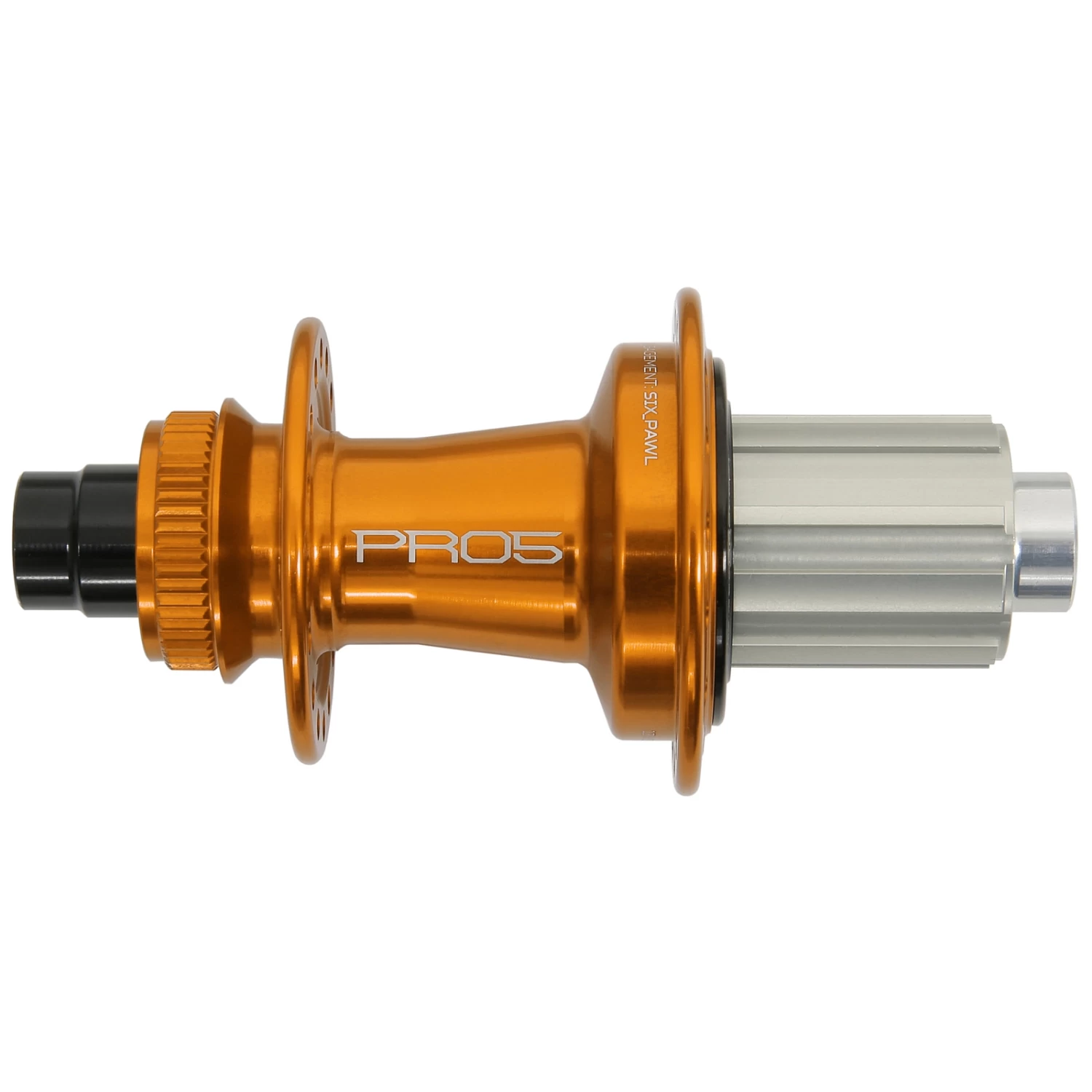

Hope Pro 5 Rear Hub – Centerlock – 12x142mm | Shimano HG – Orange

PRO 5.

Building on Hope’s 30+ years of manufacturing hubs, the Pro 5 is the combination of all experience to meet and exceed the demands of current and future bike technology. The Pro 4 proved to be one of the most reliable and versatile hubs on the market. The Hope Pro 5 builds on this with improvements throughout, offering the right balance between speed of pick-up, load capacity, durability and drag.

One of the key design objectives for the Pro 5 hub was the reduction of drag in the drive mechanism. This has real world riding benefits and was achieved by upgrading the sealing with a new zero drag labyrinth seal, and an improved ratchet and pawl system, with new springs. Both greatly reduce drag as well as increase durability and load capacity when compared with the Pro 4.

Another big update on the rear hubs comes in an increase in the points of engagement (from 44 to 108) using an offset 6 pawl freehub design, where 3 pawls are engaged at any time. This achieves the right balance between speed of pick-up, load capacity, drag & durability, and in real-world terms gives a speedy feel on the trail whilst keeping crank movement to an acceptable level without compromising the free running of the hub or its reliability.

Externally the shell takes a new profile to add stiffness without adding weight whilst housing a new axle design enabling the use of bigger bearings in a better arrangement to fit the latest freehub standards whilst increasing load capacity.

Hope hubs can be quickly and easily adapted to suit different frames and forks. Conversion kits are available separately.

Rear hub with Shimano HG freewheel for 12x142mm thru axle.

Features of Hope Pro 5:

• Hub shell machined from forged 2014 T6 Aluminium billet
• Centerlock disc brake system
• Sealed stainless steel cartridge bearings
• Labyrinth seal
