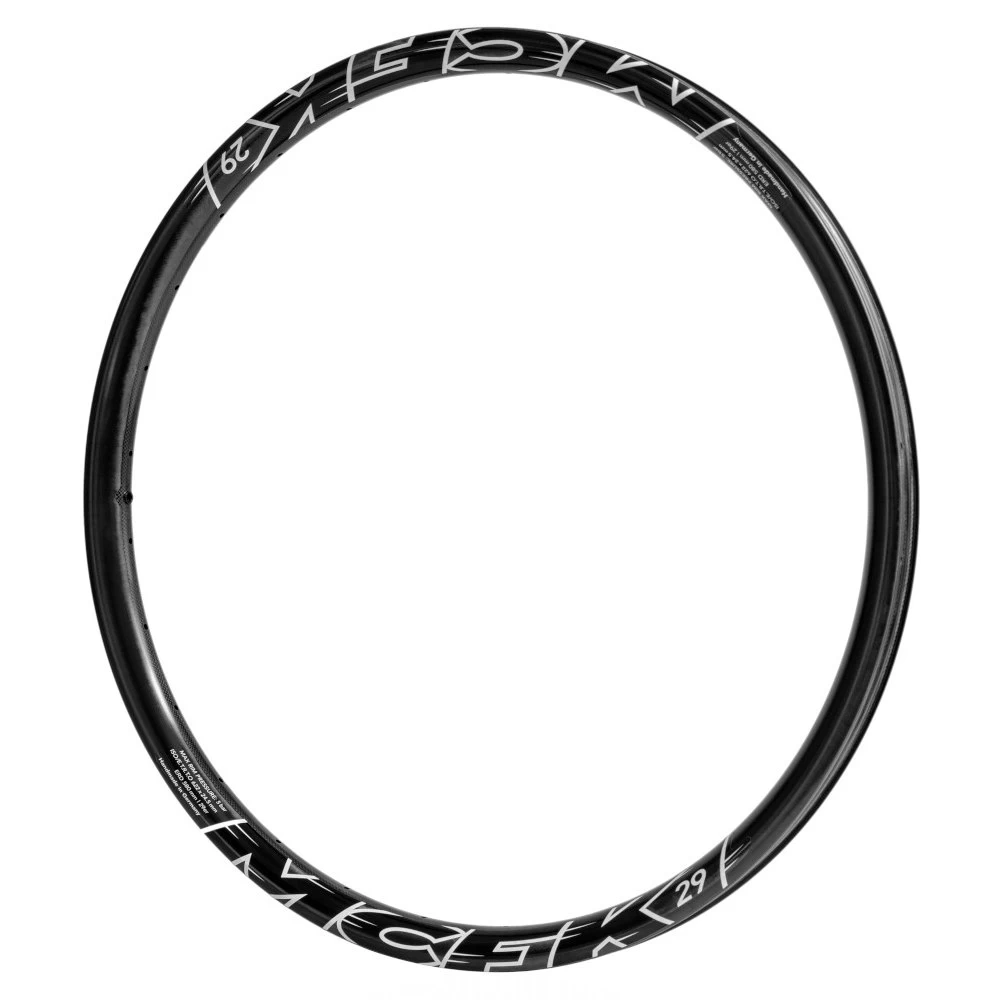

Mcfk 29 Inch Carbon MTB Rim – Disc – 25-622 – UD Matt Carbon

Extremely lightweight Carbon 29 inch rim!

The target of the development was nothing less than providing the best rim for fast and light-weight bikes. Nothing but the best!
For this purpose, Mcfk matched every parameter, every detail of the rim meticulously and did their utmost to develop the very finest for you.

• Carbon for the rim
  In contrast with aluminium, the advantage of carbon is that it stays in form. Thus, recentering, height and lateral runouts are things of the past. Once spoked properly, the wheel will not change shape or run.
• Multiple layer design
  No two types of carbon are alike. The layer design is the decisive aspect – the orientation of the fiber is the most important thing in any part made of carbon. For this reason, Mcfk use a complex mixture of fabric and unidirectional (UD) layers which are positioned exactly in the right direction to ensure that they get the best performance of the material and leave no potential unused.
• Monocoque design
  Avoiding weak points was one of the central focal points in the development. Whereas Mcfks competitors make the rim by bonding several parts together, their rim is laminated of a single piece and cured. This involves a higher input of time and effort and requires extensive know-how but adds stability, saves weight and produces a homogeneous rim.

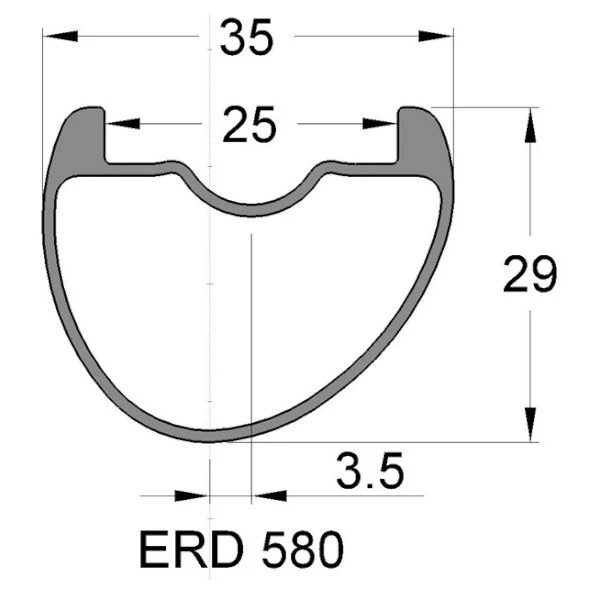

• 35mm outside width
  The wider the rim profile, the higher the lateral stiffness of the wheel.
  The flexural rigidity increases disproportionately (to the third power) of the width of the profile. Mcfks oversize rim profile on downhill rim level obtains stiffness never before attained with wheels of this weight class.
• 29mm height
  To ensure high radial stiffness of the rim, a profile of sufficient height is needed to avoid radial load such as root carpets, bumps and bottoming from causing local bends and loss of tension of spokes.
• 3.5mm asymmetry
  A very important aspect of the outstanding stability of our wheels is the distinct asymmetry of 3.5 mm. 3.5 mm asymmetry is the reason why the difference of the inevitably non-symmetrical position of the hub flanges to the hub center is reduced by 7 mm.
  This ensures uniform spoke tension on both sides of the wheel.
• 25mm inside width
  Ideal for tires up to 60mm wide. The tire takes on an ideal shape due to the inner width of 25mm and can support itself better on the rim. A lower air pressure can be driven. Curve stability and traction increase with lower rolling resistance off-road.
• Rim flange with extra stability
  The unique ratio of outside and inside widths also adds extra stability, width and solidity to the wheel flange. Bottoming – the enemy of any light-weight rim – need no longer be dreaded and so the life of Mcfks carbon rims is extended.

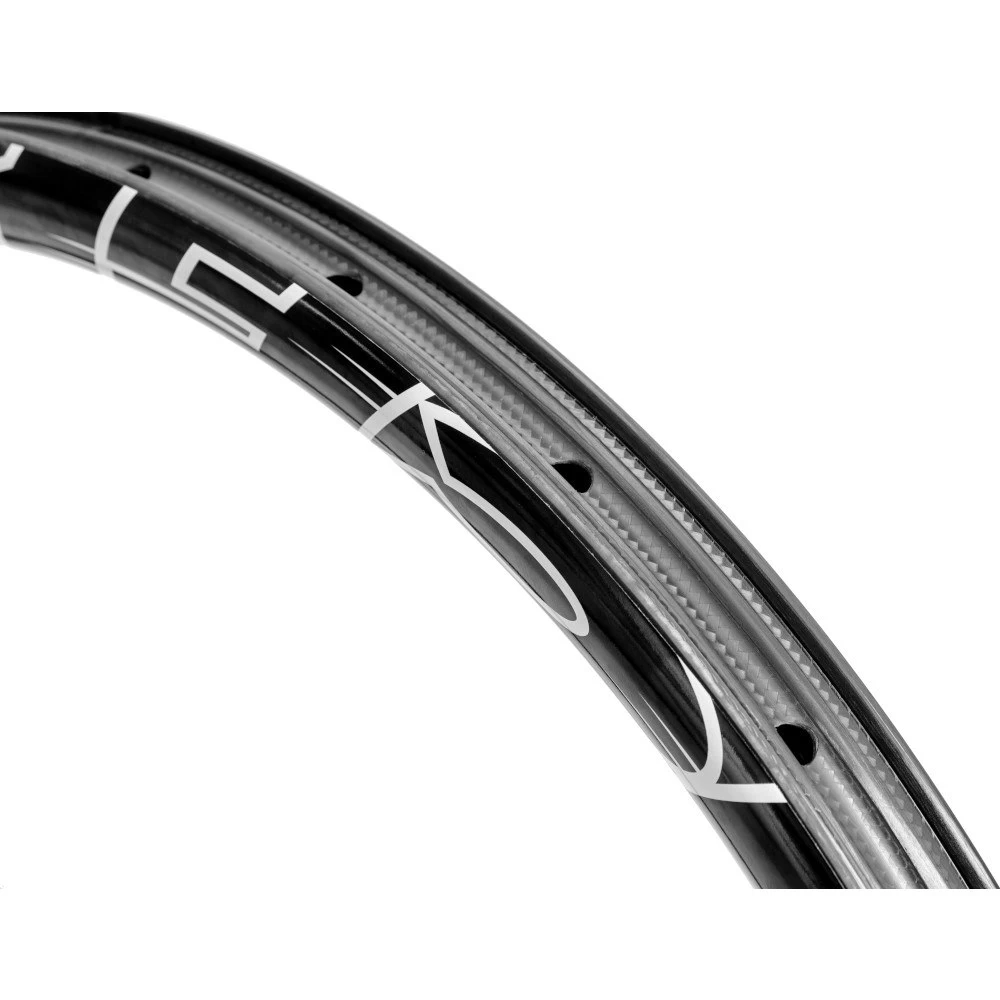

• Laminated spoke holes
  Another very important advantage of their rims is the pre-compacted, laminated spoke holes, which are not drilled. This means no cutting of fibers, high spoke tension and therefore even more stability for the wheels.
  Besides, it gives the rim reliable protection from spoke tear-out in the case of a fall. You simply have to replace a couple of spokes but never the complete wheel.
• Preformed ball head nipple tip
  To ensure a perfect fit of the nipples in the rim, they need the right nipple seat. Because Mcfk do not drill the spike holes but compress and laminate them, they can shape a perfect ball head in the rim.
• Tubeless-type rim well
  The days of “good-weather” hoses are numbered. With Mcfks specially shaped rim well you can use any kind of tire. They most of all recommend the tubeless(-ready) models.

Max. system weight: 125 kg!
Material: Carbon prepreg
Weight supplement: manufacturer information
