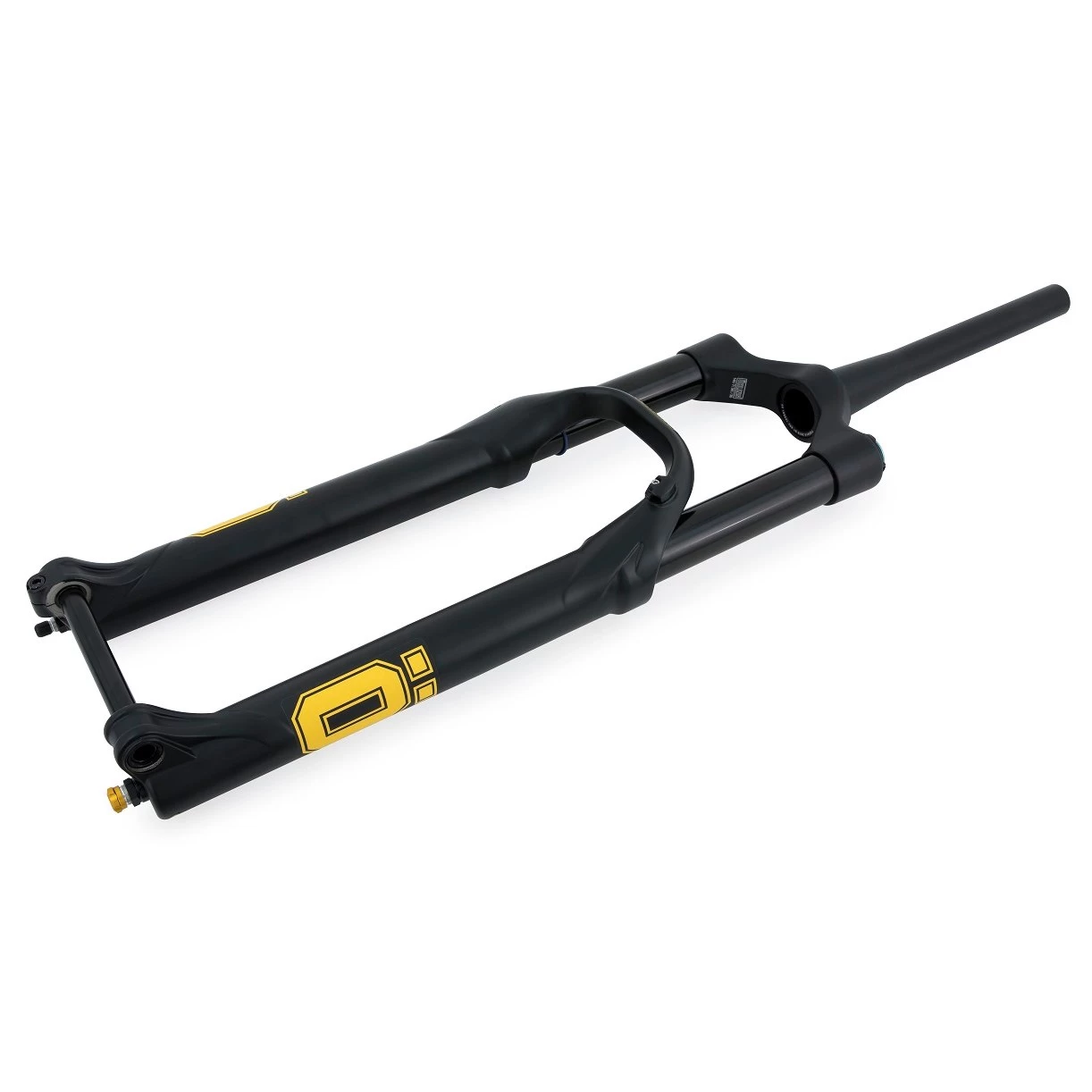

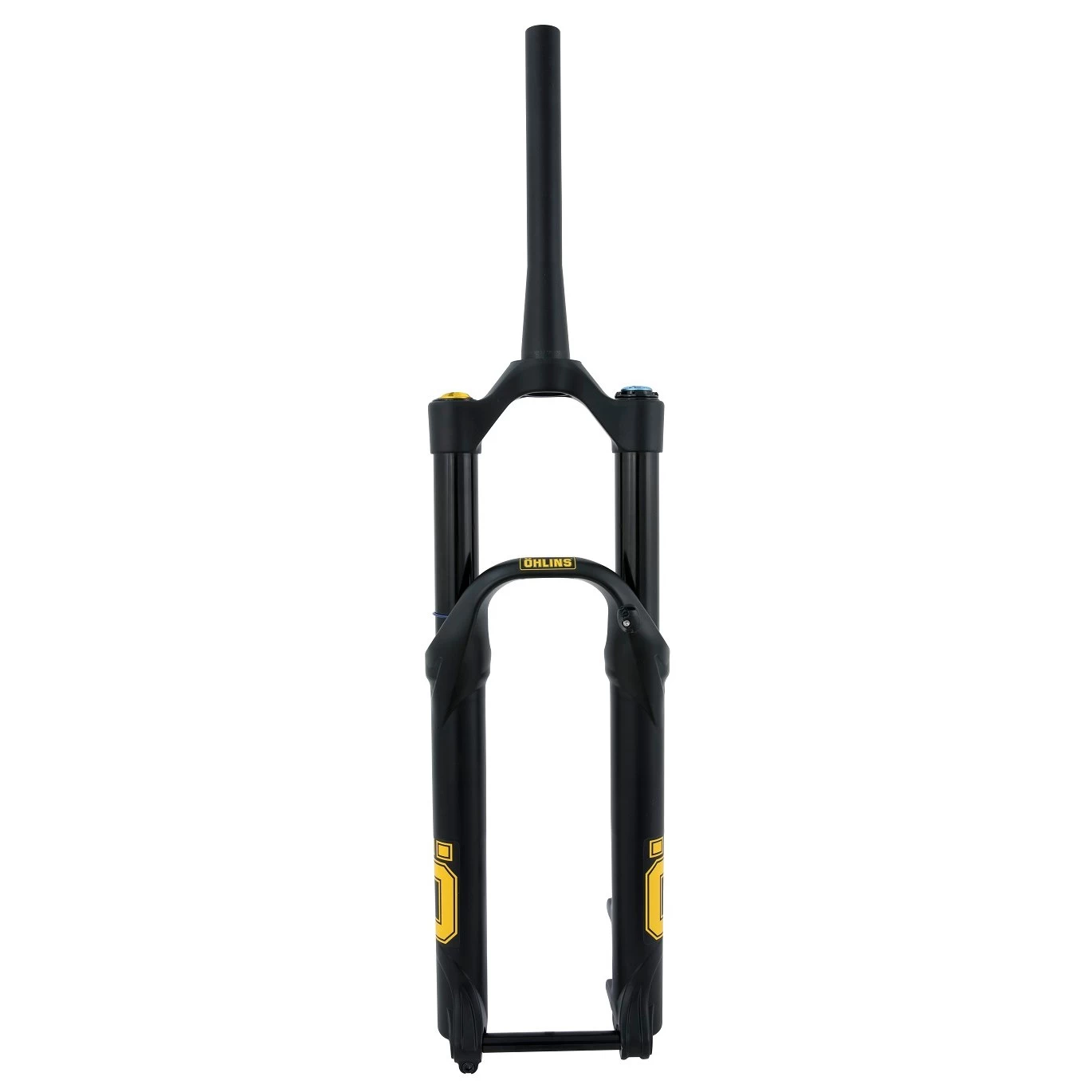

ÖHLINS RXF36 M.2 Trail Air 27.5″ Fork – 170mm – Tapered – 15x110mm Boost – Offset 46mm



The proven TTX 18 cartridge from the DH RACE FORK is used in a revised version in the newly developed Öhlins MTB fork RXF36 m.2 Air suspension fork to ensure optimum control and traction on trails and enduro races. The RXF36 m.2 fork also available as coil features an optimized 18 mm piston and for finer and faster response and a wider range of damping characteristics.

The damping adjustment range has been optimized for trails and enduro use and has 15 clicks each for the rebound and compression stages in the low-speed range and 3 clicks each for the high-speed compression stage including Climb Mode setting. The innovative spring consists of 3 air chambers, uses 2 pistons and can be individually tuned via from the first response to the end stop over the entire travel.

More space allows the use of tire sizes up to 27.5 x 2.8 inch. In addition to the many technical changes, the design of the fork has also been adapted.

Adjustment possibilities of the ÖHLINS RXF36 m.2 suspension fork

• spring rate and progression
• 15 clicks of rebound adjustment
• 15 clicks of low-speed pressure stage adjustment
• 3 clicks of high-speed pressure stage adjustment
• Climb Mode

You are not sure what you need. The helps you to find the base setup for your bike and optimizes it for you.

Included in delivery: RXF 36 m.2 fork
15x110mm thru axle
star-nut
