The urban lightness
The Orbea Vibe is an elegant companion that can easily find a place in your home or office. A lightweight bike that is simply fun to ride. With practically invisible integrated motor, battery and electronics for the modern city lifestyle.
More style, more range, more freedom! Cyclists who like these values will find the Vibe to be just the right bike for them.
With the Orbea Vibe H10 MUD you get a lightweight aluminium frame and a carbon rigid fork with plenty of tyre clearance. The bike is powered by the Shimano XT/Deore 12-speed groupset, with the Mahle X35 Plus rear hub motor providing electric assistance when pedalling. The MUD version of the Orbea Vibe is also equipped with mudguards, a kick stand, two front lights and a rear light.
Highlights of the Orbea Vibe H10 MUD city e-bike
- – All cables, wires and lines run invisibly under the stem through the head tube into the frame. And all this without additional friction or unpleasant rattling.
- – The fully integrated lighting system is another highlight with which the Vibe enriches your tours. Thanks to lighting at the front and rear, the bike draws attention to you during the day and at night and thus ensures additional safety. With steady lights and the optional high beam, the Vibe is ready for touring on the road.
- – The Vibe only has a single external cable connection to allow for rear wheel removal. The cable runs tightly under the chainstay and hides behind an unobtrusive integrated protective cover. Access to the battery socket under the bottom bracket is also virtually invisible, and the trim on the stem provides a seamless transition to the top tube.
- – The heart of the Vibe is the rear hub motor. The sophisticated drive system provides reliable, smooth motor assistance at levels designed to make your ride easier, but not to define it. And because the motor is located directly on the rear hub, you can pedal when the motor is not in use without feeling like you’re being dragged along. The Vibe features a sophisticated torque simulation algorithm to optimally support the power applied to the pedal. In other words: this bike supports you exactly when you need it – and saves energy in return when you pedal without much effort anyway.
- – The battery is one of the most noticeable parts of an e-bike system, which is why Orbea has gone to great lengths to make it as small, light and discreet as possible. The battery disappears elegantly into the frame.
- – You have the option of attaching an optional external battery pack that fits easily into the Vibe’s bottle cage, giving the bike even more range.
- – The Vibe’s Control Center is a beautiful and discreet handlebar-mounted control that allows you to easily control all functions without taking your hands off the handlebars.
- – The Vibe doesn’t need a lot of cables, ports and accessories. The CAN (Controller Area Network) bus port is a single contact that can be used for charging, system diagnosis or attaching the range extender.
- – The Vibe’s balanced, smooth motor assist requires a sophisticated sensor. Hidden inside the end ring of the cassette is a pedal sensor (PAS). It measures how much power you put on the pedal and adjusts the motor power accordingly.
- – To make the aluminum frames stronger and minimize unwanted flex, the shapes and wall thicknesses of the tubes are adjusted accordingly. Many of the tubes are butted to save weight in less stressed areas. Using the latest aluminium technology ensures that ORbea aluminium bikes are by no means second choice.
- – The carbon layup and shape of the Vibe’s fork offer the perfect combination of elasticity, tire clearance and torsional rigidity. And thanks to the integrated mudguard mounts, the bike offers even more versatility.

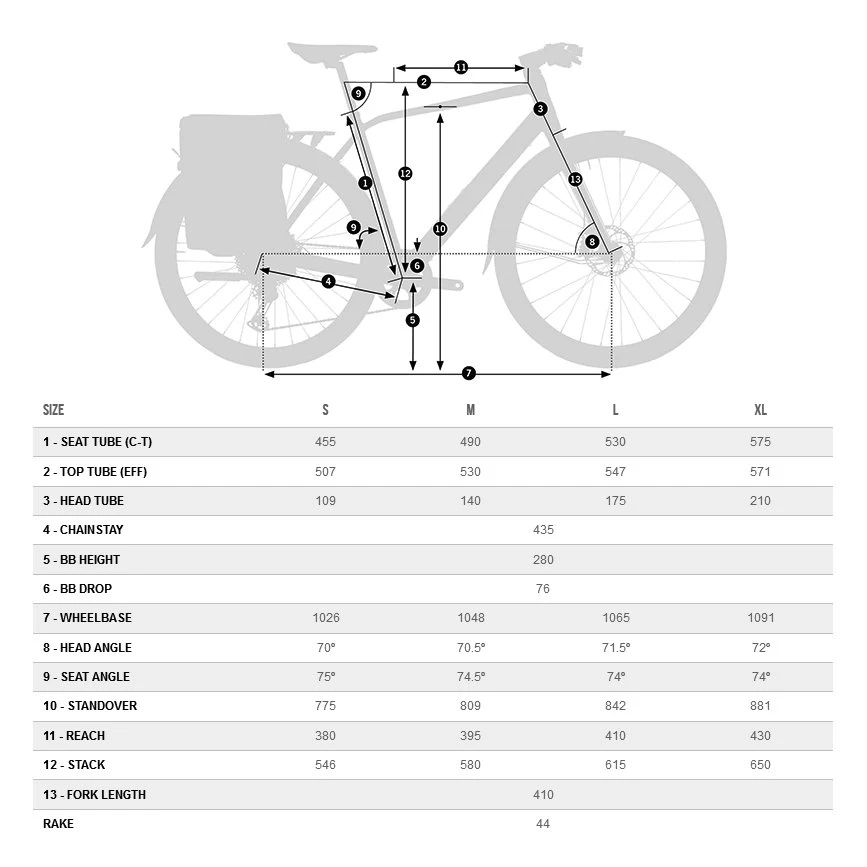

- – The Orbea Urban Geometry is designed for use in the city. For example, the slightly more upright riding position offers more comfort and visibility, so you simply feel safer.
